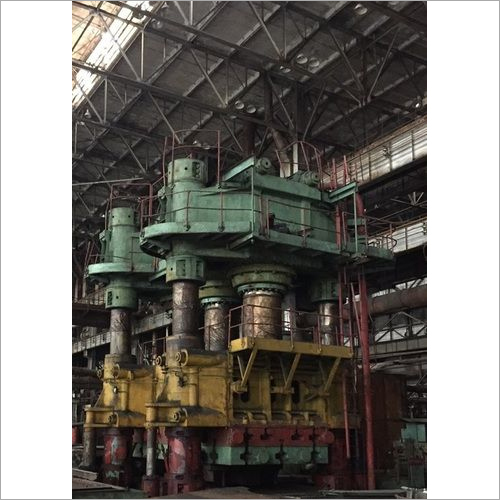

Hydraulic forging press P4658

Hydraulic forging press P4658
Hydraulic forging press P4658
Send Inquiry
Product Code : 25
Brand Name : STANKO
Product Description

Hydraulic Forging Press P4658 are mainly used for molding, forging, clinching, metal forging, deep drawing, punching, metal forming and blanking applications purpose. Application of this forging press can be noticed in automotive, aerospace, composites, thermoplastics, carbon fiber molding, GMT glass mat transfer and RTM resin transfer molding jobs. Repeatability and accuracy are the main criteria required to perform all these procedures.

  • Hydraulic forging press P4658
  • Capacity 10000 tn,
  • Table size 6500 x 4000 mm / STANKO
  • Press nominal force, tn 10000
  • Distance between table working surface and movable cross-beam, mm 3500
  • Movable cross-beam stroke, mm 1600
  • Table dimensions, mm 6500 x 4000
  • Working fluid - water with emulsol
  • The presence of cushion - yes
