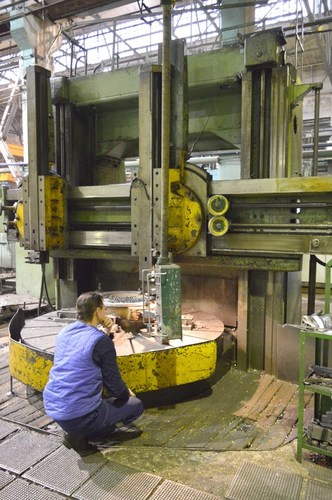

Vertical lathe 1525

Vertical lathe 1525
Vertical lathe 1525
Send Inquiry
Product Code : 30
Brand Name : STANKO
Price And Quantity
  • Unit of Measure
  • ,
Product Description

Vertical lathe 1525isused for turning of large machine components that include shells, tube plates, flanges, bottoms, caps, shells and welded or forged or cast assembly unit having maximum 2500 mm dimension. This machine is capable of handling components made of plastic, polymetals, non ferrous and ferrous metals.

  • Provided equipment is suitable for boring and turning of conical, cylindrical and curved line equipped surfaces with utmost precision.
  • This machine can be used for threading of trapezoidal, pipe, metric and other types of parts.
  • It can process end section of components with its optimum cutting speed.
  • Useful for parting and slotting procedures
  • Ideal for reaming, countersinking and drilling of center holes
  • Suitable for processing of components made of super alloy, titanium alloy, aged or annealed metal, forged steel or stainless steel etc.

This user friendly machine is reckoned for its high performance level.

Vertical lathe 1525

  • Turning diameter 2500 x turning height 1600 mm / SEDIN
  • Turning diameter, mm 2500
  • Turning height, mm 1600 / 2000 optional
  • Workpiece weight, kg 13000
  • X-axis (ram head), mm 1600
  • Z-axis (ram), mm 1200
  • W-axis (cross rail), mm 1240 / 1640 optional
  • Optional C-axis, automatic tool changer, milling head, chip conveyer
