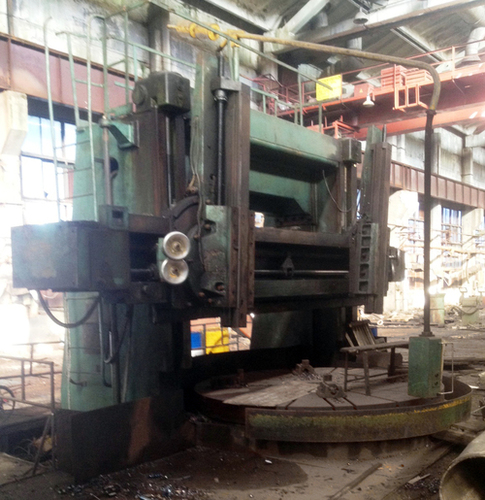

Vertical lathe 1L532

Vertical lathe 1L532
Vertical lathe 1L532
Send Inquiry
Product Code : 40
Brand Name : STANKO
Product Description

Vertical lathe model 1L532 used for rough and finishing of various details from ferrous and non-ferrous metals.

VTL 1L532 used for operations:

  • Turning of cylindrical and conical surfaces;
  • Boring cylindrical and conical surfaces;
  • External and internal turning, with constant cutting speed;
  • Grooving and parting;
  • Drilling, reaming and reaming of central holes - if install CNC system

Specification

Vertical lathe 1L532

  • Turning diameter 3200 x turning height 1600 mm / SEDIN
  • Turning diameter: mm 3200
  • Turning height: mm 1600 / 2000 optional
  • Work piece weight: kg 16000
  • X-axis (ram head): mm 1720
  • Z-axis (ram): mm 1200
  • W-axis (cross rail): mm 1240 / 1640 optional
  • Optional C-axis: automatic tool changer, milling head, chip conveyer
